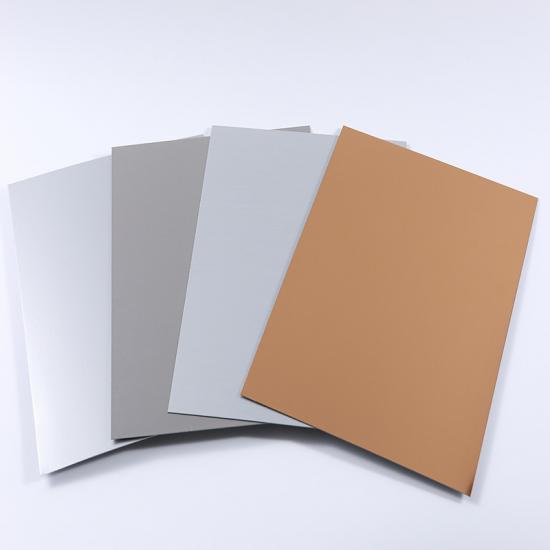

PCM PPGI Color Coated Galvanized Steel Coil for Home Appliances

PCM PPGI Color Coated Galvanized Steel Coil for Home Appliances

1. Production Description:

PCM: Color coating steel sheet:
Protective film - finish coating - prime coating - pretreatment - aluminum/steel coil - back painting.

Product Item	PCM Color Coated Steel for Home Appliances
Base Metal	SGCC, SPCC, DX51D, DX52D, DX53D, DX54D  (As per the punch, with shaped picture will be better)
Thickness	0.2-1.0mm (standard 0.3-0.8mm)
Width Size	600-1600mm (standard 600-1250mm)
Length Size	6000mm (max), as per request
Surface Coating	PE Coating
Back Coating	Epoxy
Color Range	RAL color (solid,metallic,high gloss), Pure Color, Brushed, Flower style etc.
Top Coating Thickness	18~25μm,  as per request
Back Coating Thickness	5~7μm, as per request
Surface Protection	PE protective film
Certificate	ISO9001, SGS, ROHS
Pencil Hardness	≥H
T-Bend Test	≤2T
E-Cupping Test	6mm
MEK Test	More than 100 times
Impact Test	No cracking and peeling(50kg/cm)
Color Difference	△E<0.5
Paint Company	PPG Valspar Becker KCC Nippon
Coil Weight	3~5 Tons/ coil, as per request
Package	Coil or Sheet  Sheet: Width≤1600mm,Length≤6000mm Coil: Width≤1600mm ,Inner Diameter: φ405mm φ505 etc
Application	Refrigerator, Wash machine, Water heater, Freezer, DVD, TV etc

"Alucosuper" is our brand. (www.ahalucosuper.com) We are JINGGONG STEEL BUILDING GROUP (alucosuper.en.made-in-china.com), - WONDERFUL-WALL BUSINESS DIVISION.
Products are widely used for building material(indoor, outdoor, roofing, ceiling, door), package, home appliance(refrigerator, freezer, wash machine, water-heater, TV, etc.), advertisement, station...and anyother area.

3. Production line

4.Packing & Delivery:
* Standard export waterproof package, Eye to Wall & Eye to Sky for coil, Wooden Cases & Wooden Pallets for sheet.
* Delivery time: within 30 days

5. Structure:

6. Application:
